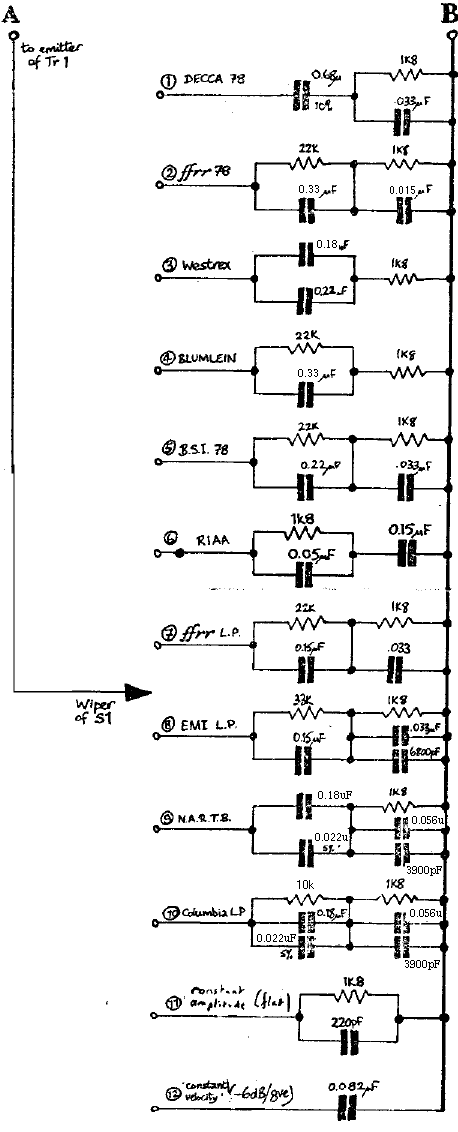

This is the feedback loop, with the various circuits for the different equalizations.
Click here for a much larger and clearer version using standard values.
